MultiCube Modular
Modular Energy & Power Multi-Function Sub-Meter — Meters 2–20× Three Phase or 6–60× Single Phase Loads
- 2–20× 3ø or 6–60× 1ø loads
- Class 1 accuracy
- Modular DIN rail design
- Modbus / Ethernet / M-Bus
Product Description

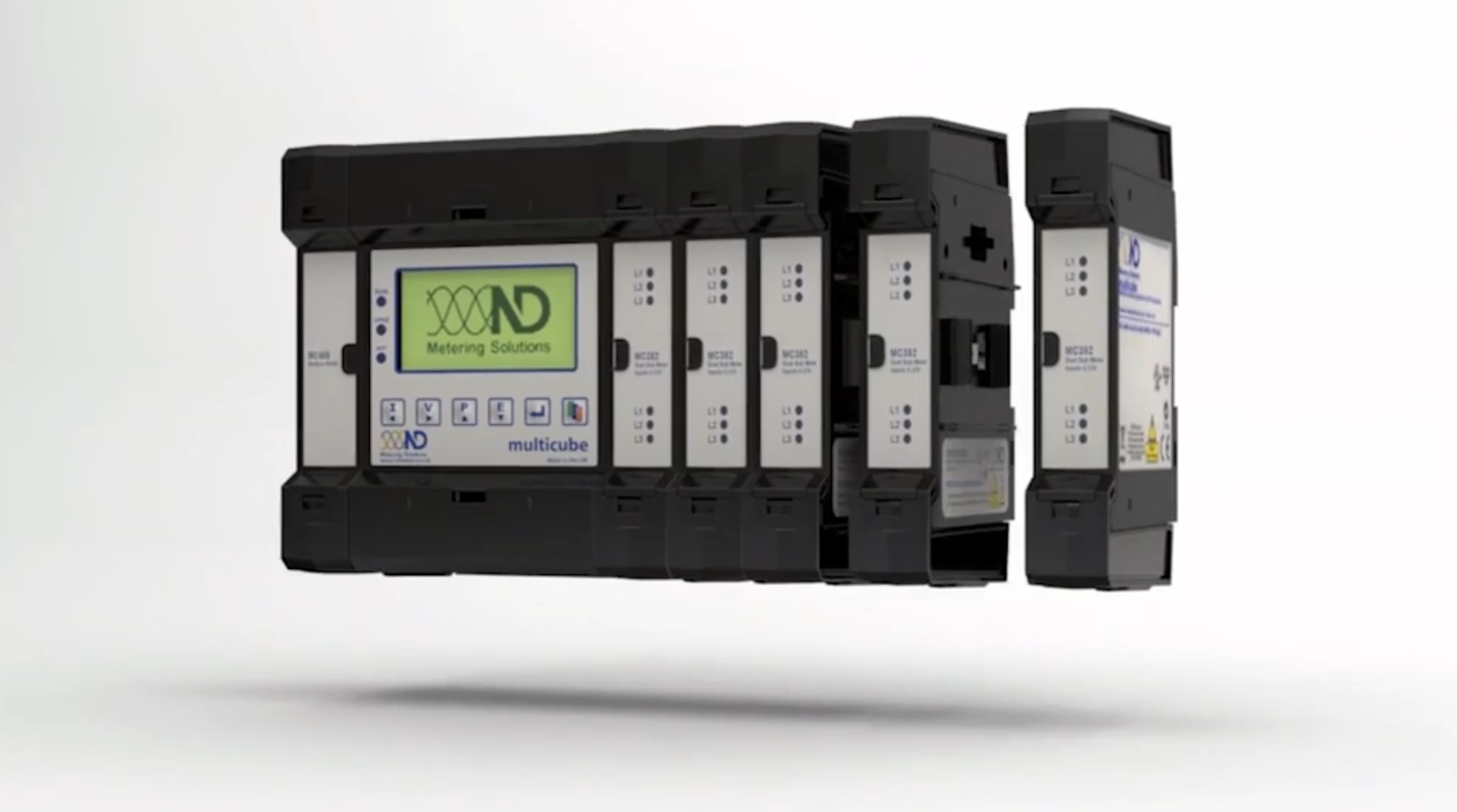

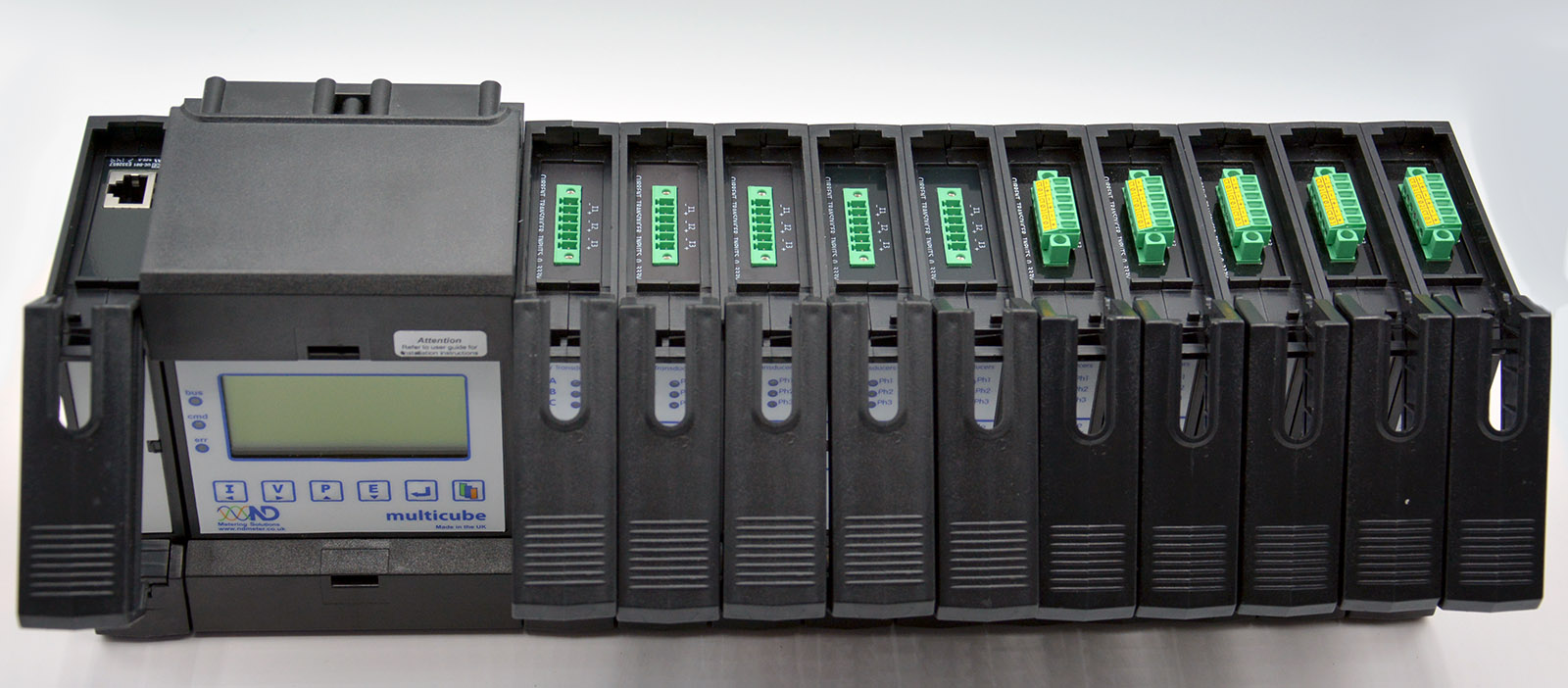

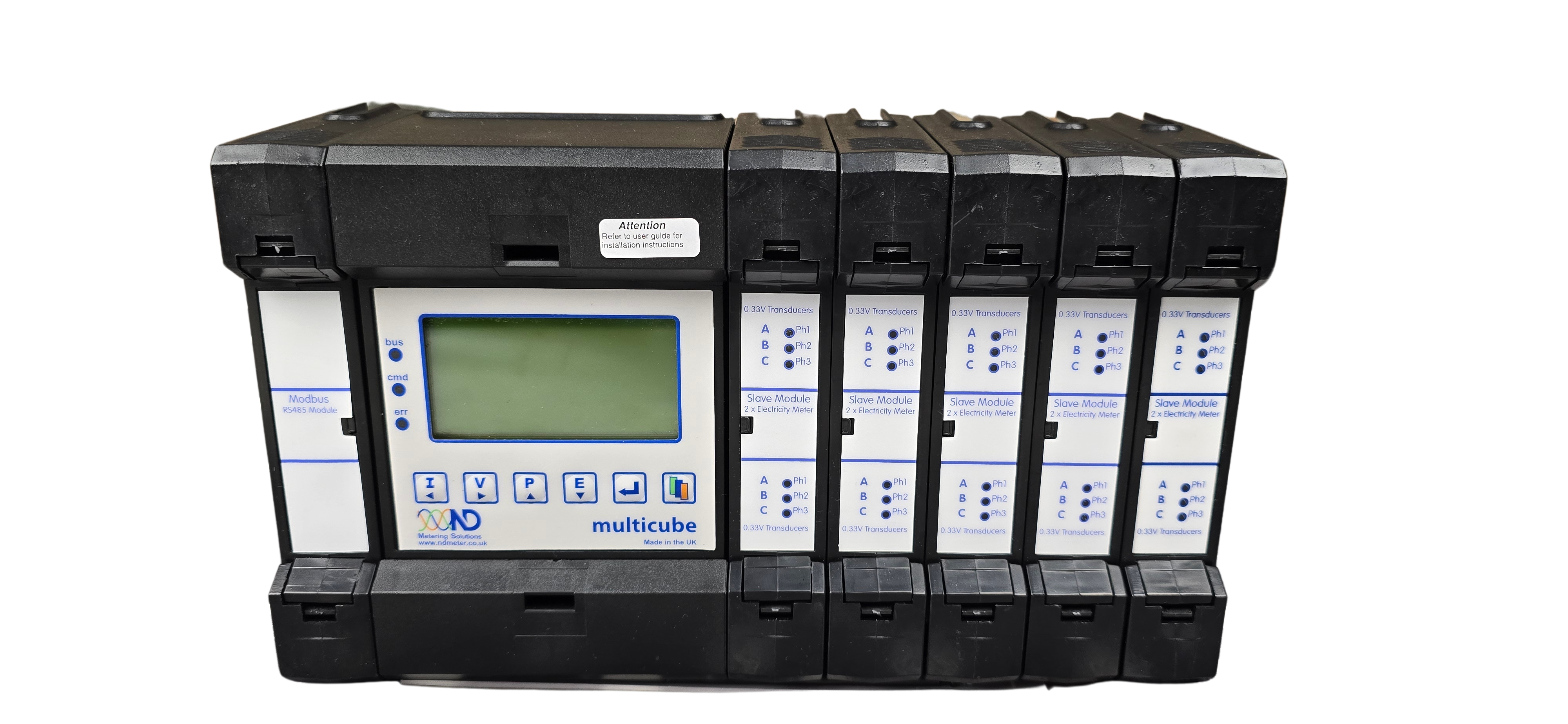

The MultiCube Modular is a modular energy and power multi-function sub-meter for monitoring 2–20× three-phase loads, 6–60× single-phase loads, or any combination. Modular DIN rail mounted case with a 3-line backlit display and large rising cage terminals accepting 0.25–4 mm² cables. Optional remote panel mount display. Class 1 kWh accuracy (EN 62053-21). Measures V, I, kW, kVA, kvar, kWh, kvarh, frequency, power factor, peak and demand values. 333mV current input. Factory-set options include import/export (or Auto CT Rotation: switchable) and individual harmonics to 15th and THD to 30th (25th at 60 Hz). Optional Modbus RS-485, Ethernet IP with data logging, M-Bus, and 12-way digital output module for pulse outputs or alarms. Factory-set logging option: 1000 days profiling, 8 tariffs — data logging with Ethernet IP comms option. Plastic and metal enclosure options and pre-wired panels available. ND 5-year warranty.
Key Features
- Modular energy and power multi-function sub-meter
- Meters 2–20× three-phase or 6–60× single-phase loads, any combination

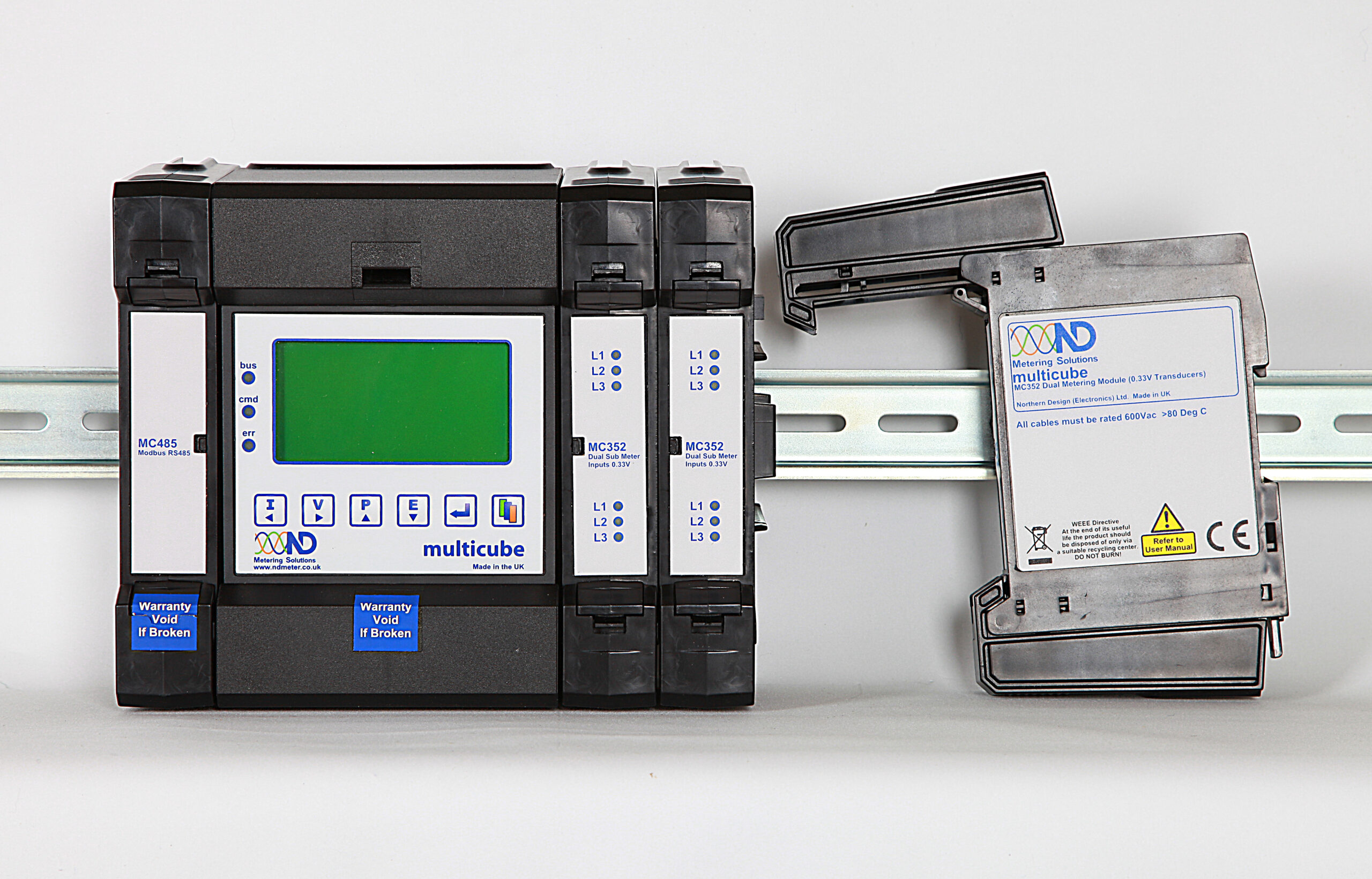

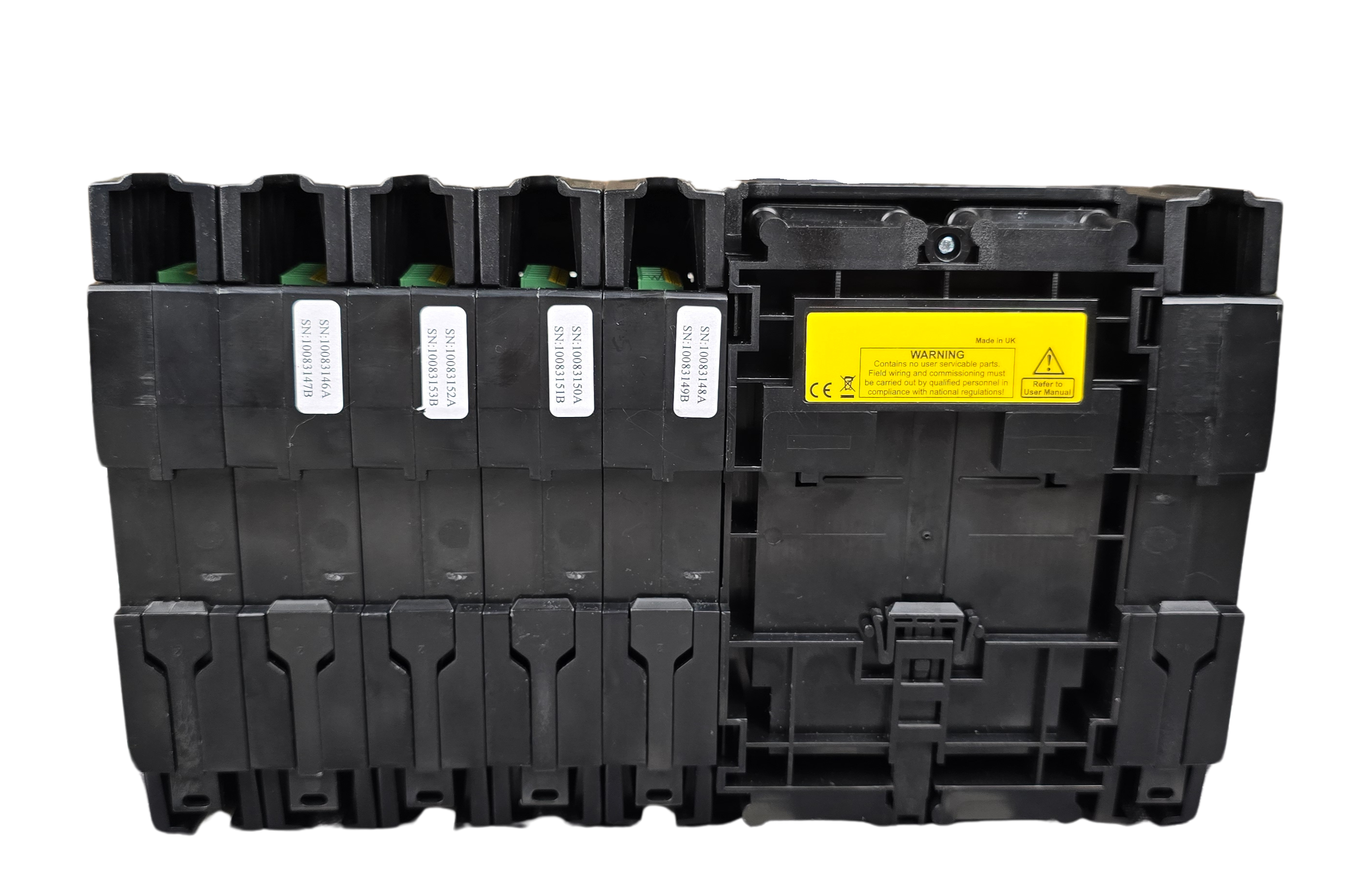

- Modular DIN rail mounted case with 3-line backlit display
- Optional remote panel mount display

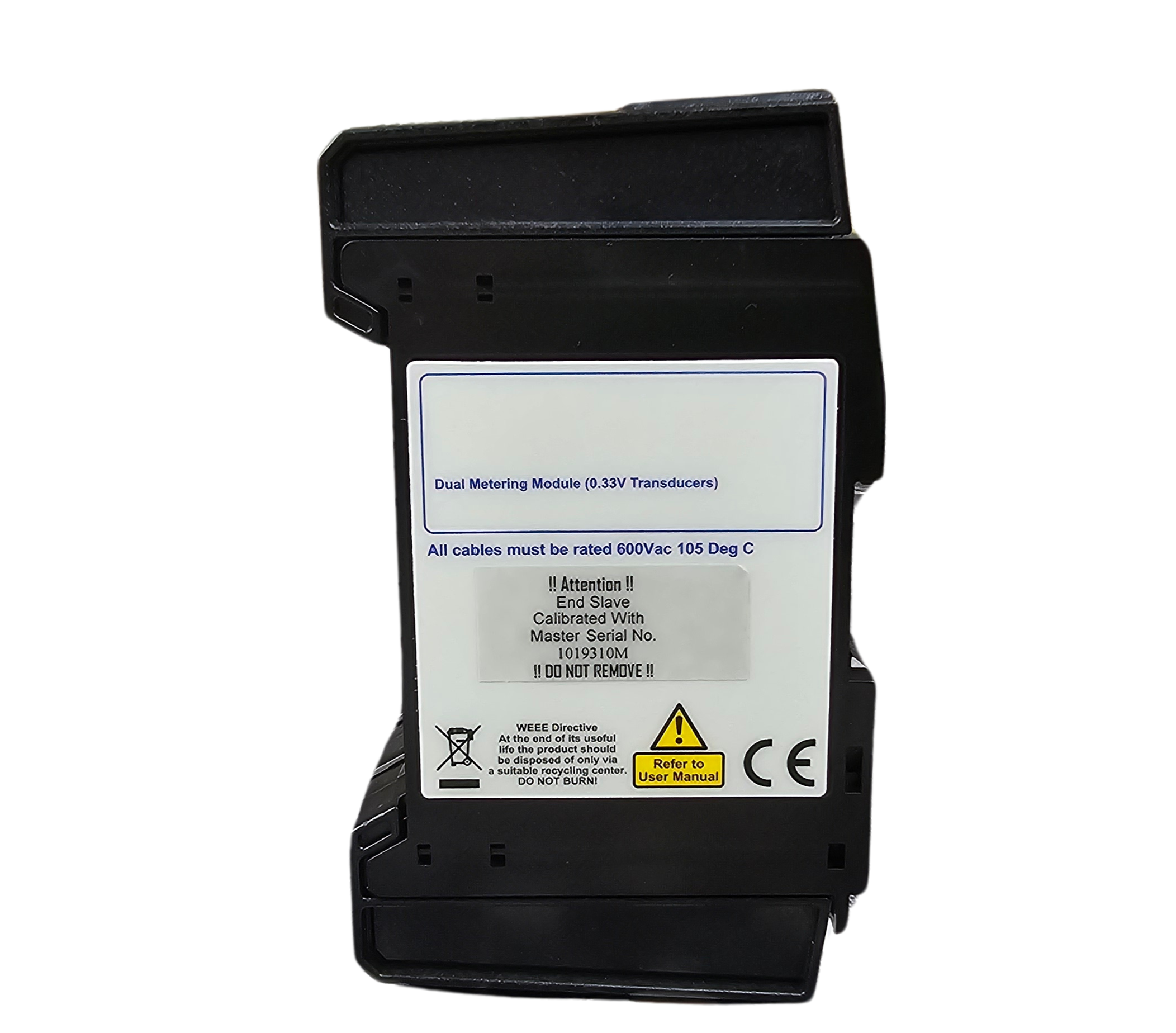

- 333mV current input
- Large rising cage terminals (0.25–4 mm² cables)
- Class 1 kWh accuracy (EN 62053-21)
- V, I, kW, kVA, kvar, kWh, kvarh, frequency, power factor
- Peak and demand values
- Import/export (or Auto CT Rotation: switchable)
- Optional individual harmonics to 15th and THD to 30th (25th at 60 Hz)

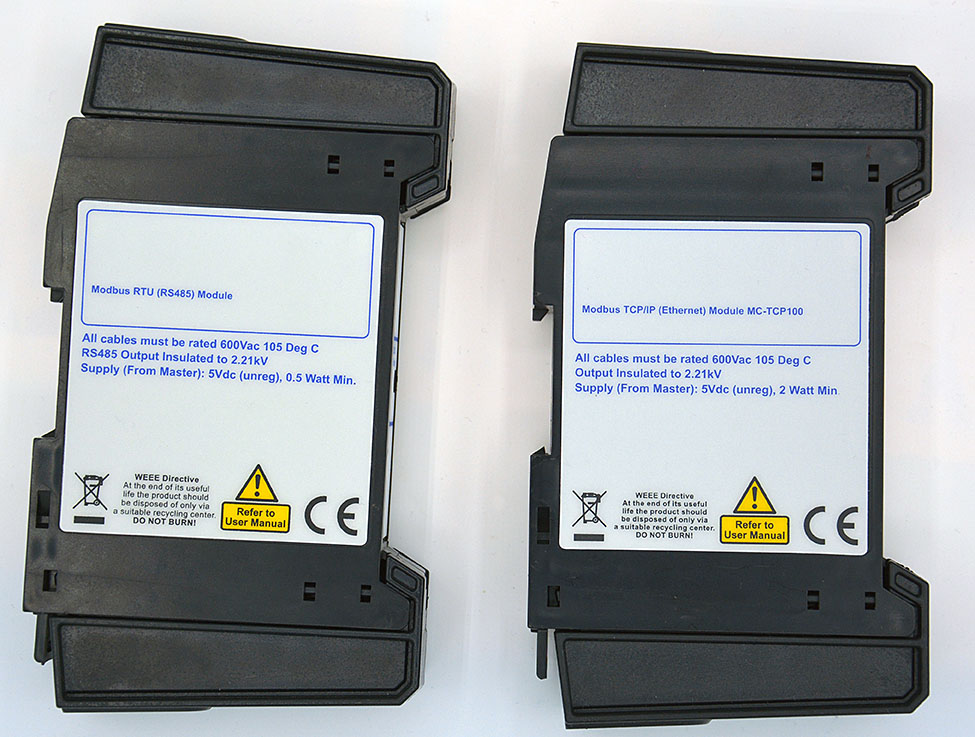

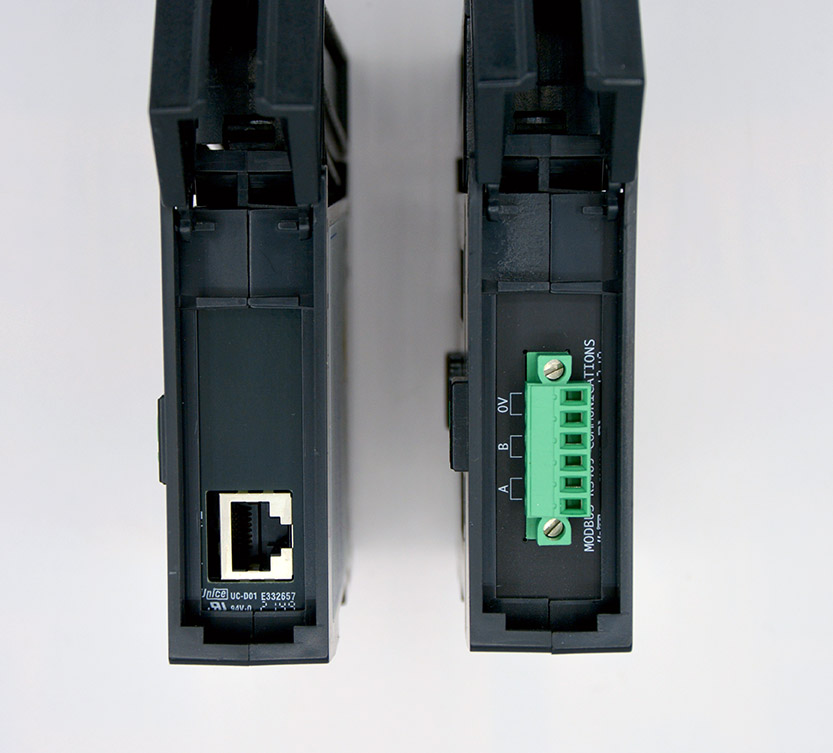

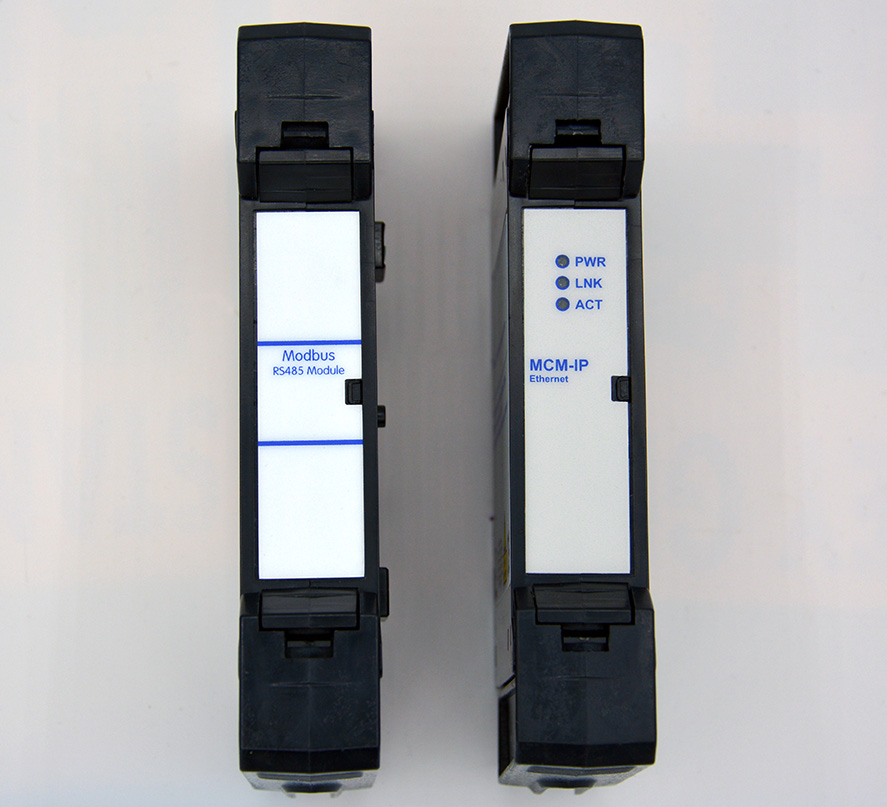

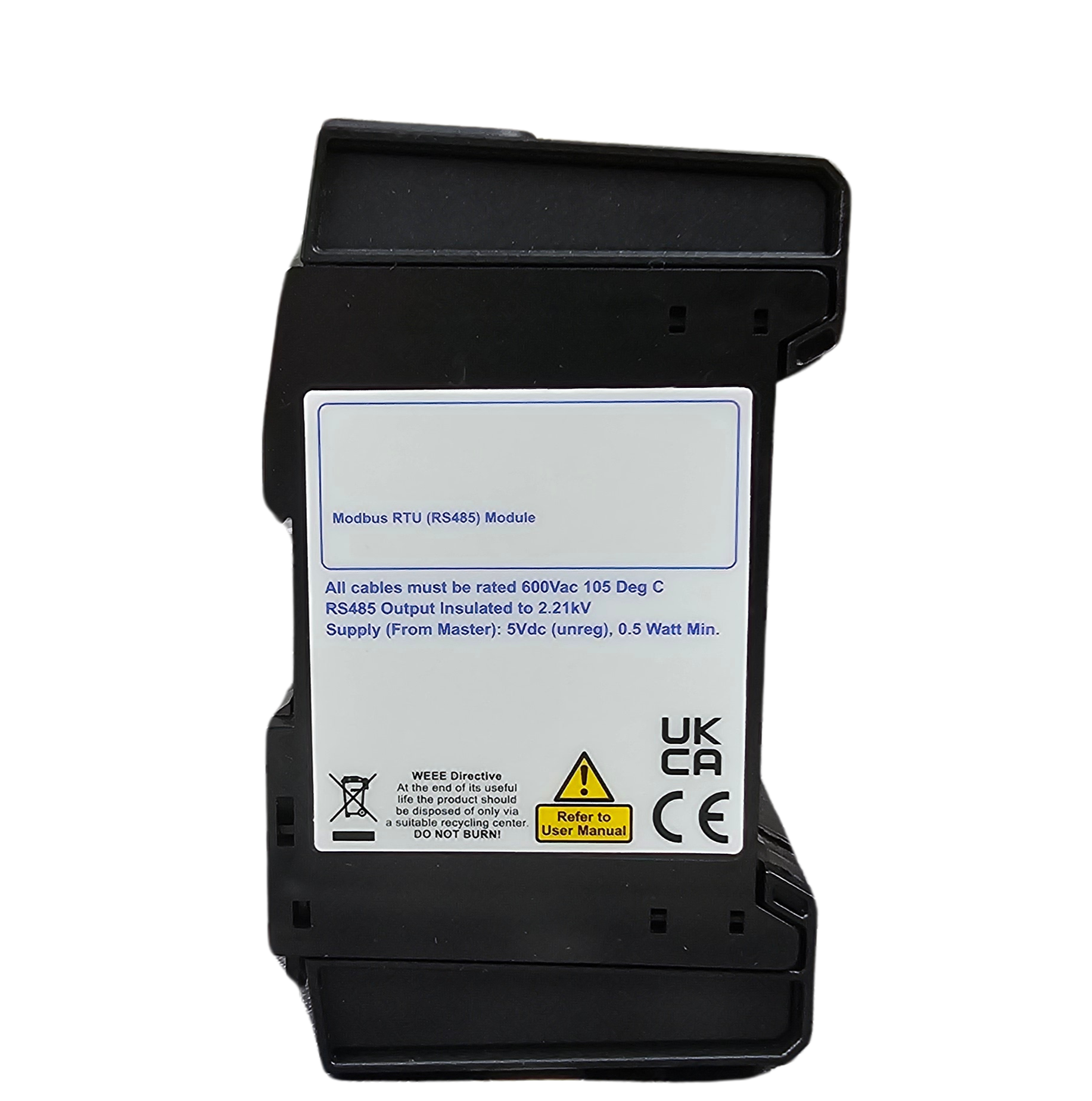

- Modbus RS-485 communication option
- Ethernet IP with data logging option
- M-Bus communication option
- Digital output module — 12-way for pulse outputs or alarms
- Logging option: 1000 days profiling, 8 tariffs

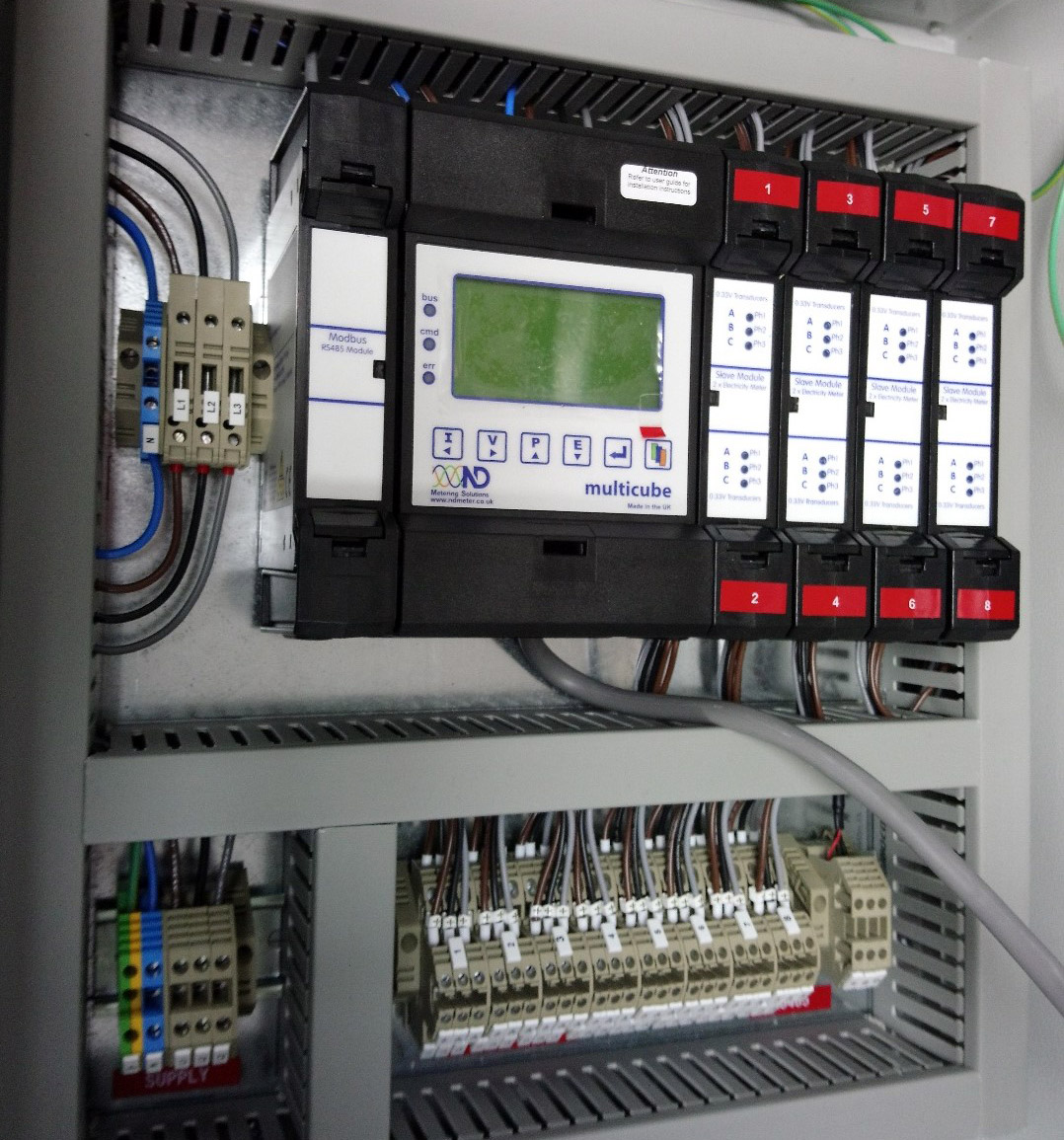

- Plastic and metal enclosure options, pre-wired panels
- ND 5-year warranty
