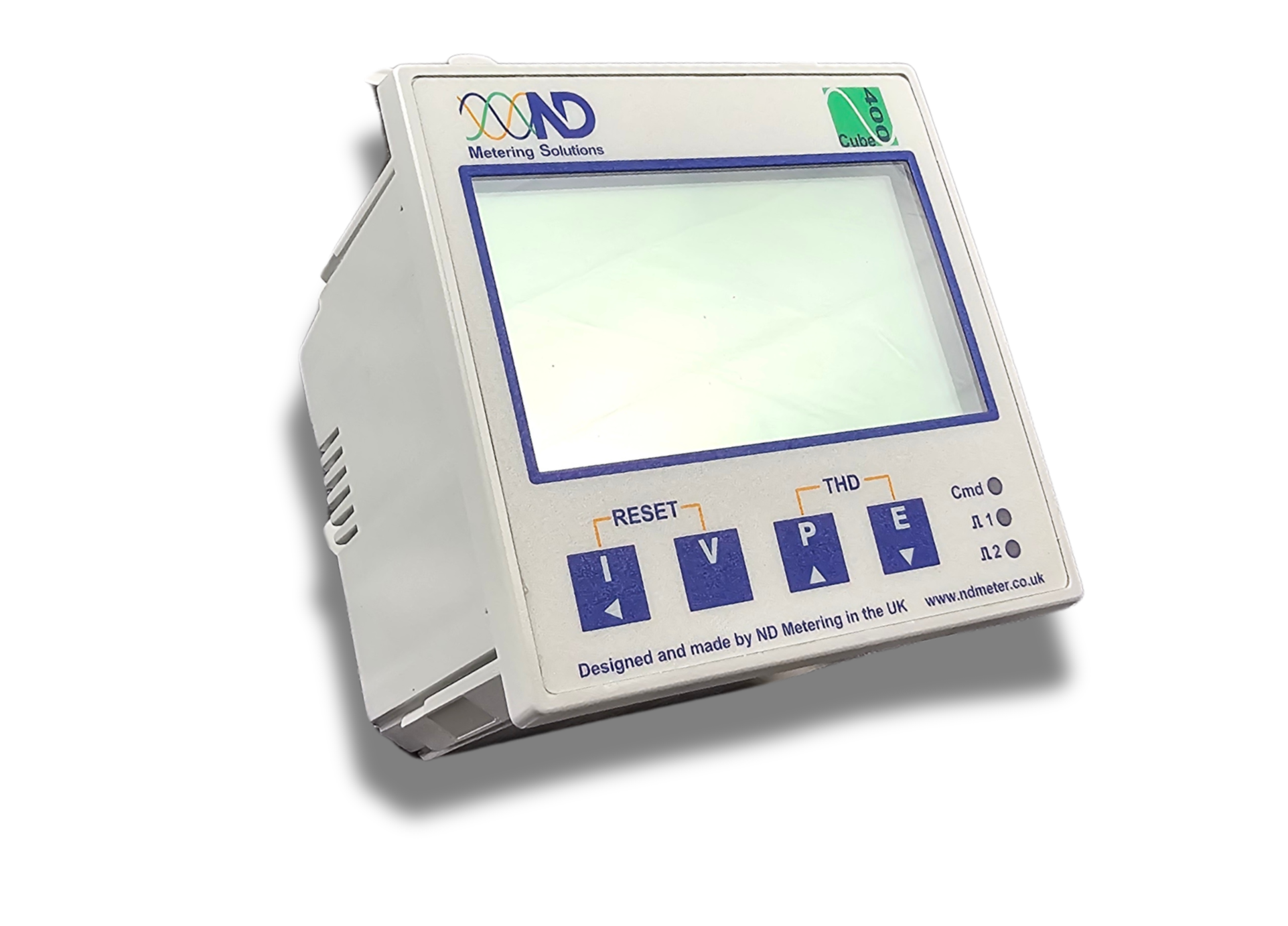

Cube 400
Energy & Power Multi-Function Sub-Meter — Meters 1× Three Phase Load — 333mV
- 333mV CT input
- Class 1 accuracy
- 3-line backlit display
- Pulse / Modbus / Ethernet
Product Description
The Cube 400 is an energy and power multi-function sub-meter for monitoring a single three-phase load. 96×96 panel mount case with a 3-line backlit display and large rising cage terminals accepting 0.25–4 mm² cables. Class 1 kWh accuracy (EN 62053-21) with comprehensive parameter measurement. Auxiliary supply factory-set options include 230V, 110V, 48V DC or 24V DC. Standard with 2 pulse outputs; optional Modbus RS-485 or Ethernet IP with logging, 3 digital inputs and 2 digital output alarms. Auto CT Rotation by default. Import/Export feature available on request (factory set). Optional individual harmonics to 15th and THD to 30th (25th at 60 Hz). Plastic and metal enclosure options and pre-wired panels available. CE, UL, cUL, CB, RCM accredited with a 5-year warranty.
Key Features
- Energy and power multi-function sub-meter — meters 1× three-phase load
- 96×96 panel mount case with 3-line backlit display
- 333mV current input
- Large rising cage terminals (0.25–4 mm² cables)
- Auxiliary supply factory-set options: 230V, 110V, 48V DC or 24V DC
- Class 1 kWh accuracy (EN 62053-21)
- V, I, kW, kVA, kvar, kWh, kVAh, kvarh, frequency, power factor
- Peak and demand values
- Hours run meter
- 2 pulse outputs as standard
- Auto CT Rotation by default
- Import/Export feature available on request (factory set)
- Optional individual harmonics to 15th and THD to 30th (25th at 60 Hz)
- Modbus RS-485 communication option
- Ethernet IP option with logging, 3× digital inputs, 2 digital output alarms
- Plastic and metal enclosure options, pre-wired panels
- CE, UL, cUL, CB, RCM/C-Tick accredited
- ND 5-year warranty
